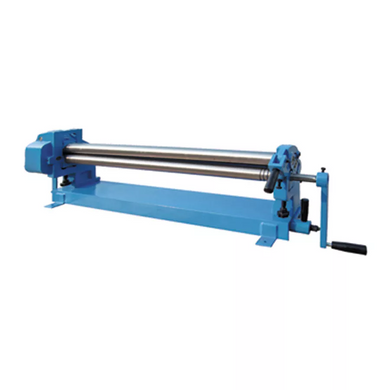

The main purpose of the machine is to produce cylindrical metal products. The design features make it possible to produce cone-shaped parts, products in the form of cylinders, and also hem the edges without damaging the surface of the sheet.

Peculiarities:

• Hardened steel shafts
• Hardened steel gear drive
• Upper shaft lift lever
• Upper shaft fixation frame
• The weight and rigidity of the machine allow you to effectively work with workpieces with a max. thick
• Grooves for bending rods 5/16” (7.9mm); 3/8” (9.5mm); 1/2” (12.7mm)
• Cast iron side supports with rotation transmission units
• The maximum permissible thickness when working with stainless steel is no more than 1.0 mm.

The minimum possible Ø when working with low-carbon steel is 1.5 mm - at least 100 mm (since it depends on the type, grade, heat treatment of the material, as well as its length and thickness). A more accurate determination of the minimum Ø is possible only by test rolling.

Specifikation:
