The design was introduced in 1973 by the company Rego-Fix. This successful solution quickly spread and was standardized by DIN 6499 and ISO 15488.
FEATURES:
- Made from special spring steel
- Clamping force ensures high precision
- Used with milling, drilling, tapping, grinding, and other machines
- Collets with standard precision – runout accuracy of 0.010 – 0.015 mm

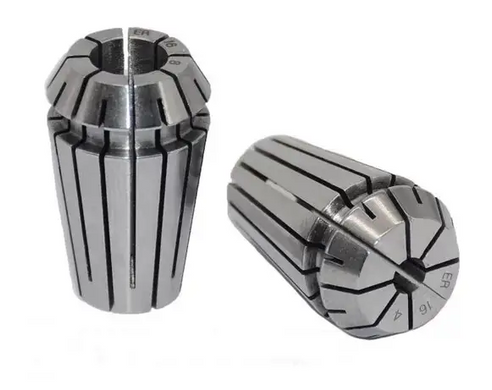

Collets of the series TYPE 0700 ER, according to DIN6499B
|
ТYPE |
d H7 |
D |
D1 |
D2 |
L |
L1 |
L2 |
L3 |
WORK RANGE |
|
ER32 |
2.0-2.5 |
32 |
33 |
29.2 |
40.0 |
7.16 |
5.5 |
3.6 |
0.5 |
|
>2.5- 20.0 |
32 |
33 |
29.2 |
40.0 |
7.16 |
5.5 |
3.6 |
1.0 |
|
d
|
L
|
RUNOUT, mm |
|
|
CLASS I |
CLASS II |
||
|
1.0-1.6 |
6 |
0.010
|
0.015
|
|
>1.6-3.0 |
10 |
||
|
>3.0-6.0 |
16 |
||
|
>6.0-10.0 |
25 |
||
|
>10.0-18.0 |
40 |
0.015
|
0.020
|
|
>18.0-26.0 |
50 |
||
|
>26.0-30.0 |
60 |
||
|
>30.0-34.0 |
80 |
0.020 |
0.030 |
