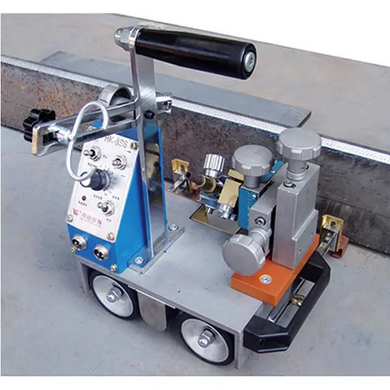

Huawei HK-8SS is a lightweight and multi-functional cart for the production of metal structures. It allows you to increase the efficiency of welding work in the manufacture of beams, boxes, bunkers, and other large-sized structures.
PECULIARITIES:
- Lightweight and compact design
- Four wheel drive
- Permanent magnetic positioning system

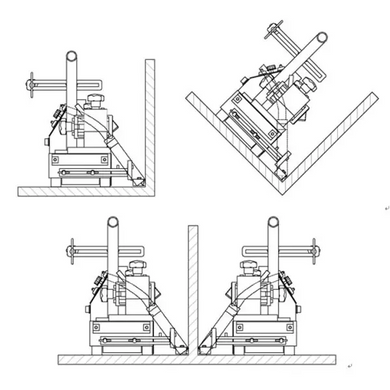

- Roller carriage stops used for positioning when welding corner connections
- Control the movement of the carriage using a console or remote control
- Synchronization with most power sources of semi-automatic welding machines
SPECIFICATION:
|
Voltage |
220 V |
|
|
Consumption |
22 W |
|
|
Speed |
5-900 mm/min |
|
|
Welding torch adjustment |
Up/down |
50 mm |
|
Left/Right |
50 mm |
|
|
Working angle |
±45° |
|
|
Welding angle adjustment |
10° |
|
|
Working angle range |
360° |
|
|
Dimensions |
215x275x215 |
|
|
Weight |
8.5 kg |
|
SET:
- Carriage HK-8SS – 1 pc
- Power supply with power cable – 1 pc
- Extension cable for power supply – 1 pc
- Adjustable burner holder – 1 pc
- Set of hex keys 1.5/2/2.5/3/4/5/6 mm – 1 pc
- Instructions – 1 pc.
