►DESCRIPTION

These plugs are typically suitable for more heavy duty applications, heat resistant up to 90ºC (194ºF)

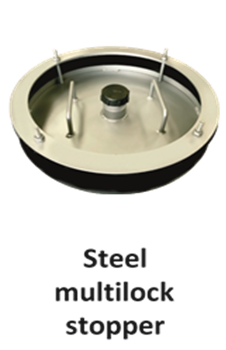

Stoppers SES20/ SES21/ SES24/ SES28/ SES30/ SES32/ SES36 are multilock

►SIZING AND SPECIFICATION

PIPE SIZE INTERNAL NOMINAL DIAMETER: 32"/ 800 mm

WILL FIT PIPES WITH INTERNAL DIAMETER: 31.10 - 32.67"/ 790 - 830 mm

MINIMUM INSERTION INTO PIPE: 3.7"/ 95 mm

OVERALL LENGTH: 125 mm

DIAMETER OF WATERWAY: 2"

MAXIMUM ALLOWABLE BACK PRESSURE: 3 psi/ 0.2 bar

WEIGHT (LBS / KG): 64 lbs /28.90 kg

All plugs conform to British Standards BS8005 for low pressure testing and sealing of pipes. Larger sizes available upon request.
