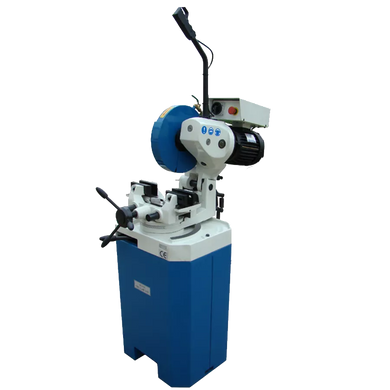

The three-phase induction motor is designed for long-term operation at medium loads. The strong, massive frame ensures rigidity of the structure and minimizes vibration when cutting the workpiece. All gears of the gearbox are in a sealed oil bath with an easily accessible drain hole and a peephole for monitoring the oil level on the gearbox housing. An oil bath significantly extends the service of the machine and reduces noise.
FEATURES:
- ± 45° swivel head with degree scale for precise miter cuts
- Convenient turning on/off of the machine from the handle on the lever
- Oil bath gearbox for durability and reduced operating noise
- Standard coolant supply system with diaphragm pump and built-in 2.5 liter tank
- Mechanical vice with eccentric clamp and split rear jaw for more rigid workpiece clamping
- End stop for cutting workpieces of the same length
- Saw blade with high speed steel (HSS) teeth Ø350 mm included in delivery
- Stable steel cabinet included in delivery
Limit dimensions of the processed product:
|
90° C/R |
120 mm |
140x100 mm |
|
45° C/R |
105 mm |
100x100 mm |
TECHNICAL CHARACTERISTICS:
|
CS-350 |
90° ±45° |
|
Motor power |
0,75/1,3 (3PH) kW |
|
Cutting speed |
18,36 rpm |
|
Drive |
Gear |
|
Vise opening |
145 mm |
|
Max.disc size Ø |
350 mm |
|
Disc landing parameters |
32/2/8/45 |
|
Dimension (Body) |
980/620/950 mm |
|
Dimension (Stand) |
770/580/470 mm |
|
N.W./G.W. |
190/212 kg |
