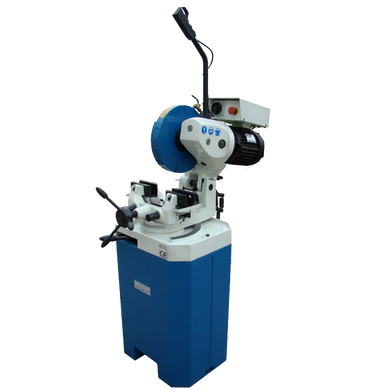

The three-phase induction motor is designed for long-term operation at medium loads. The strong, massive frame ensures rigidity of the structure and minimizes vibration when cutting the workpiece. All gears of the gearbox are in a sealed oil bath with an easily accessible drain hole and a peephole for monitoring the oil level on the gearbox housing. An oil bath significantly extends the service of the machine and reduces noise.
FEATURES:
- High-quality and precise cutting, less noise pollution
- Metal protective casing protects against sparks, chips and direct contact
- Possibility of repeated sharpening of the saw blade
- The force from the engine is transmitted to the disk through a gear drive
- Built-in coolant tank with a capacity of 2.5 liters.
- ± 45° swivel head with degree scale for precise miter cuts
Limit dimensions of the processed product:
|
90° C/R |
100 mm |
140x90 mm |
|
45° C/R |
90 mm |
100x90 mm |
TECHNICAL CHARACTERISTICS:
|
CS-315 |
90° ±45° |
|
Motor power |
0,75/1,3 (3PH) kW |
|
Cutting speed |
18,36 rpm |
|
Drive |
Gear |
|
Vise opening |
145 mm |
|
Max.disc size Ø |
315 mm |
|
Disc landing parameters |
40/2/8/55 |
|
Dimension (Framework) |
980/620/900 mm |
|
Dimension (Stand) |
770/580/470 mm |
|
N.W./G.W. |
185/207 kg |
