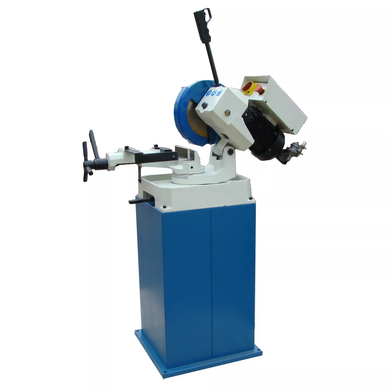

Three-phase induction motor with a power of 1.1 kW and a shaft speed of 42 rpm is designed for long-term operation at medium loads.The stable, massive plate with a built-in 2.5-liter coolant tank ensures rigidity and minimizes vibration when cutting workpieces.

The force from the engine is transmitted to the disk through a gear drive. All gears of the gearbox are in a sealed oil bath with an easily accessible drain hole and a peephole for monitoring the oil level on the gearbox housing. An oil bath significantly extends the service of the machine and reduces noise.

machines with metal saw blades of the CS series provide a cleaner and more accurate cut, no burr and less noise. This technology also has lower cutting costs due to the possibility of repeated sharpening of the disc.

For safety reasons, the machine is equipped with a metal protective casing that protects from sparks, chips and direct contact with the saw blade.

FEATURES:

• ± 45° swivel head with degree scale for precise miter cuts
• Convenient turning on/off of the machine from the handle on the lever
• Oil bath gearbox for durability and reduced operating noise
• Standard coolant supply system with diaphragm pump and built-in 2.5 liter tank
• Mechanical vice with eccentric clamp and split rear jaw for more rigid workpiece clamping
• End stop for cutting workpieces of the same length
• Saw blade with high speed steel (HSS) teeth Ø275 mm included in delivery
• Stable steel cabinet included in delivery

Limit dimensions of the processed product:

TECHNICAL CHARACTERISTICS:
