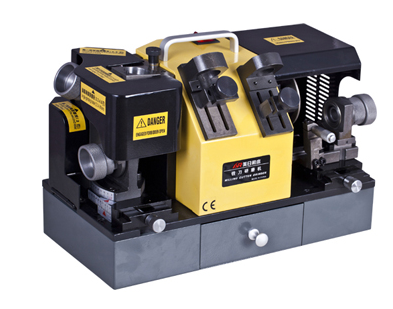

FEATURES:
- Sharpening the platform (narrow plane with the cutting edge), sharpening along the back surface of the tool (backing), turning the bridges and sharpening along the side cutting edge (ribbon)
- The machine will allow you to quickly and accurately restore the cutting edges and geometry of worn cutters
- Compact dimensions and light weight allow it to be used permanently or moved to the required location for operational work
- To bring the machine into working condition, it is enough to place it firmly on a horizontal surface and connect to a 220 volt network
SPECIFICATION:
|
Milling cutter sharpening diameter |
4-14 mm |
|
Sharpening angle |
0-5° |
|
Power V/W |
V/W 220/180 |
|
Revolutions |
4400 U/min |
|
Abrasive wheel |
CBN oder SDC |
|
Dimensions of collets, mm (pcs.) |
4, 6, 8, 10, 12, 14 (6) |
|
Dimensions |
410x245x300 mm |
|
Weight |
22 kg |
1.Standard Equipment：Grinding wheel :SDC (for carbide)×1
- Nine collets： Φ4,Φ6,Φ8,Φ10,Φ12,Φ14
- 20# collet：Φ6,Φ8,Φ10,Φ12,Φ14
2. Two collet chucks: 2,4 flutes ×1 piece;3,6 flutes×1 piece
