PECULIARITIES:

• Compact and light weight
• Reinforced rail and additional stops for more precise positioning and cutting
• Working area with dimensions from 1500x2000 mm to 1500x6000 mm
• Possibility of installing an oxygen gas or plasma cutter
• High productivity when performing a large number of similar tasks
• The ability to program the machine manually or by loading drawings into the CNC system memory
• Synchronization of the machine control system with CAD Autocad, Solidworks, etc
• There is no need for special workplace preparation
• Installing the machine in areas with limited free space
• The standard kit includes FastCam software, which allows you to quickly display a drawing with subsequent integration into the machine interface
• For optimal control of the burner height in automatic mode, a THC module is provided

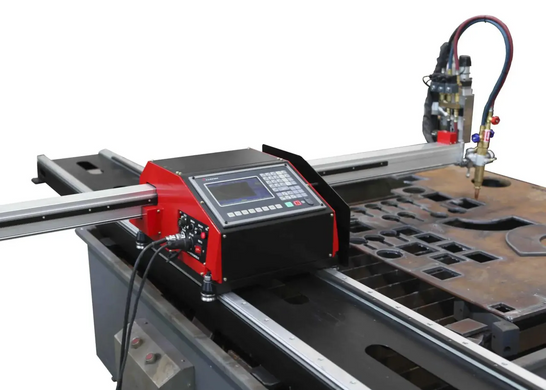

CONTROL-EXECUTIVE BLOCK:

• USB connector
• Power Supply
• The machine control system is made taking into account the multiprocessor board
• The propulsion system consists of servo motors, longitudinal movement motor system and console motors
• The control panel has an LCD display
• A block for connecting external devices, such as a plasmatron power supply, laptop, tablet, Bluetooth receiver, etc

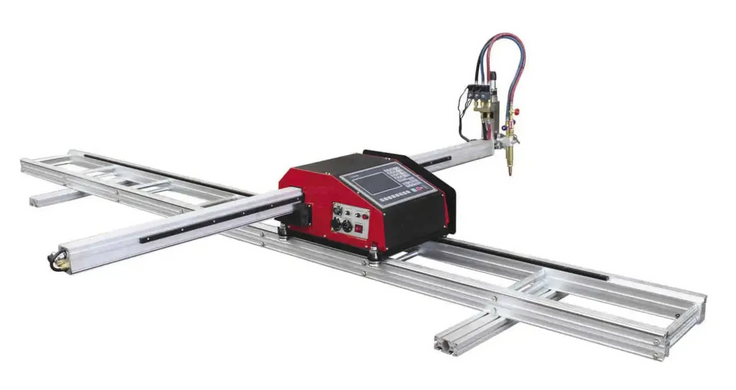

CONSOLE:

• ensures that the cutting device is held and its transverse movement passes through the body of the control and executive unit and is moved by motors
• The cutting device is fixedly fixed on the edge of the free arm of the console, and movement is made by extending or retracting the console
• avoids the use of complex and bulky portals for placement and movement of the cutting device, which ensures fairly high accuracy of positioning and movement

SPECIFICATION:

Movement speed (for all models):

• Cutting speed 50-750 mm/min
• Max. speed without load 5000 mm/min
• Recommended speed 3000 mm/min
• Working area 1500x3000 mm
• Positioning accuracy 0.25/0.35 mm
• Dimensions (L×W×H) 3500×2200×370 mm
• Weight 134 kg

SET:

1. FastCam software
2. Automatic burner height control module THC
3. Instructions with training disc
4. Power cable
5. Auto ignition cable
6. Cable connecting the main engine control unit to the carriage – 2 pcs
7. Burner control unit
8. Plasma cutter holder
9. Gas distributor with hoses and cutter
10. Connector for connecting to the gas distributor – 2 pcs
11. Set (nozzle+mouthpiece) G03-1
12. Set (nozzle+mouthpiece) G03-2
13. Set (nozzle+mouthpiece) G03-3. Clamp – 2 pcs
14. A set of keys
15. Set for cleaning holes in mouthpieces
16. Cross rail
17. Guide rail
