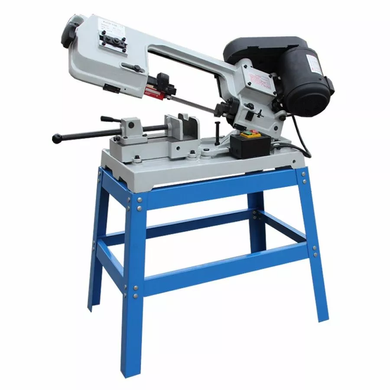

Raising the saw frame, clamping the workpiece and the sawing process is carried out manually by the operator. For cutting small items made of wood, plastic and other soft materials, the saw frame can be installed in a vertical position. The machine is then secured.
Technical characteristics, combined with the cost of the machine, make these machines popular among various categories of consumers. Supplied assembled with the stop removed and the stand disassembled.
FEATURES:
- Belting
- Rotary vice
- Stable design with transport wheels
- Cut length limiter
- Adjusting the belt tension
- Additional table for cutting slabs in a vertical position of the machine
CUTTING ANGLES:
|
90° C/R |
115 mm |
100x150 mm |
|
45° C/R |
110 mm |
60x100 mm |
TECHNICAL CHARACTERISTICS:
|
Motor power |
0,375 KW (1PH) |
|
Voltage |
220 (1PH) V |
|
Belt speed |
20-29-50 rpm |
|
Belt size |
13x0.6x1540 mm |
|
Drive |
V-belt |
|
Cutting angle |
from 0º to 45º in one direction |
|
Packing size |
970x460x460 mm |
|
N.W./G.W. |
68/72 kg |
