Particularities:
- High processing accuracy due to special design.
- Free switching between manual and automatic feed.
- Tilt angle adjustment within 0-30°.
- Cold cutting without temperature deformation, does not change the structure of the metal.
- Bevel removal of different shapes: U, V and J.
- The inner diameter of the processed pipes is 80-240 mm.
- Pneumatic and electric drive (servo and hydraulic drive optional).
- Skills: chamfering, internal drilling, facing, complex chamfering.
Specifications:
|
Model |

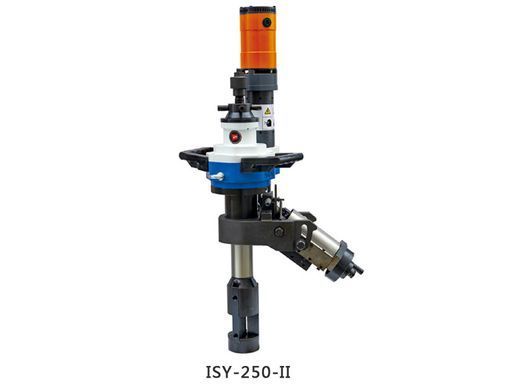

ISY-250-II |
|---|---|
|
Power parameters |
220-230 V, 1~, 50/60 Hz |
|
Power |
1,43 kW |
|
Working range |
Ø 80-240 mm |
|
Material thickness |
up to 75 mm |
|
The rotation speed |
16 rpm |
