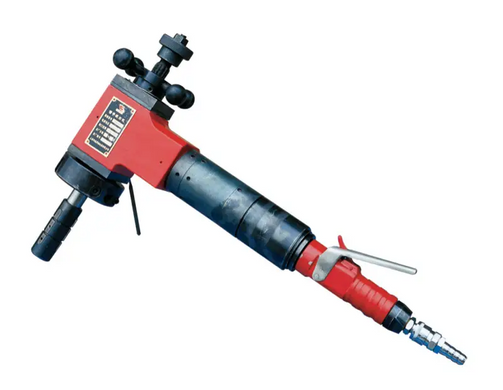

The chamfer for pipes GPK-80 is designed for chamfering before welding external at 30° and 37.5°, internal 15°, trimming at 0°, with an internal diameter from 28 to 76 mm, with a maximum wall thickness of 15 mm.

The unit is equipped with a pneumatic motor. Chamfering is carried out with special cutters with a certain sharpening angle, installing them in a tool holder.

PECULIARITIES:

• You can simultaneously remove 2 types of chamfers by installing 2 cutters in the holder: one chamfer cutter, the other a trim cutter
• If it is necessary to remove the chamfer and level the end surface from the recess, to do this, the chamfer cutter is set ahead of the trim cutter by the required amount
• You can made pipes of carbon and high-alloy steels, aluminum, copper, titanium, plastic, fiberglass, etc
• The edge finishing process (beveling or trimming) is quick and simple
• The chamfer is secured inside the pipe and is centered and leveled by spreading three self-centering jaws

 SPECIFICATION:

The delivery set of the chamfer for pipes GPK-80 includes 4 cutters: end 0 °, 2 external chamfers for chamfers 30 ° and 37 °, internal chamfers 15 °.
