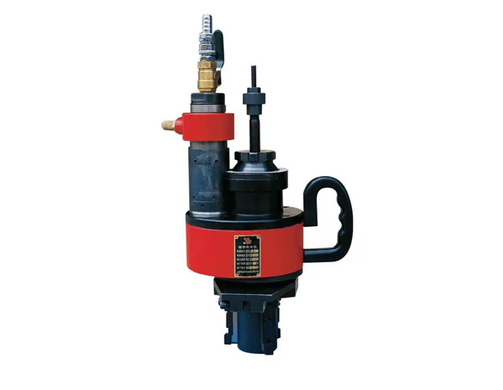

The chamfer remover for GPK-150 is designed for the preparation before welding of pipe edges with an external chamfer at 30° and 37.5°, an internal chamfer at 15°, a trim at 0°, with an internal diameter from 65 to 159 mm, with a maximum wall thickness of 15 mm.

The pipe chamfering machine operates with a pneumatic compressor with an air flow rate of 900 liters per minute. for 6 atm.

Chamfering with the GPK-150 machine is carried out with special cutters with a certain sharpening angle, which are installed in a holder.

FEATURE:

• You can remove 2 types of chamfers at the same time by installing a controller with 2 cutters in the cut, one chamfer cutter, and a trim cutter in the second
• If you need to remove the chamfer and level the trimming surface with the fall, then for this the chamfering cutter is set with the trimming tool feathering to the required value.
• You can cultivate pipes made of carbon and high-alloy steels, aluminum, copper, titanium, plastic, fiberglass, etc
