►DESCRIPTION
The system enables reliable, repeatable, high‑quality stainless steel welding without oxidation
A 36" pipe purges below 0.1% oxygen in under 10 minutes; smaller pipes purge faster
The Rapid Purge™ system is durable and reusable, reducing costs
The system saves time, gas, and money
Typical purge times are under 10 minutes
The thru‑bore design minimizes the purge area and gas use
Friction‑free coatings allow easy movement through pipes and bends
Ready to use: connect to regulated gas supply, flow up to 80 l/min
A luminous strip ensures quick, precise alignment to the weld center
Inflatable dams and hose are heat‑resistant and insulated for up to 250 °C (482 °F)

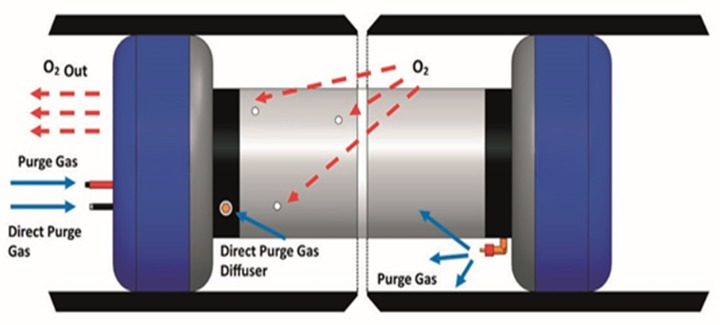

►FUNCTIONING

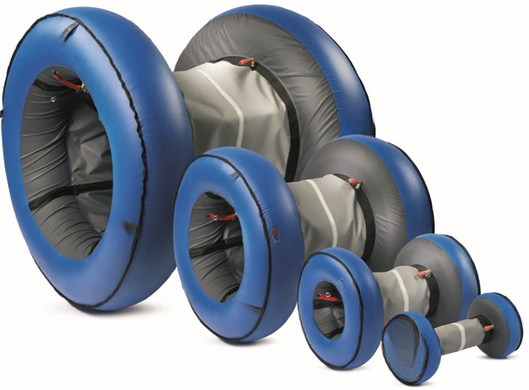

Comprises a tandem inflatable dam system connected by an umbilical hose and collar to reduce the volume being purged
A gas exhaust valve is installed between the primary and secondary dam, along with an auxiliary argon purge line
This system valve is pre-set, making it ready to use ‘straight out of the box’
Each system is covered with heat protective material, so that the higher temperatures closer to the weld do not damage the system
►SIZING AND SPECIFICATION
NOMINAL PIPE SIZE: 38"/ 950 mm
INTERNAL DIAMETER RANGE (I/D): 36.61 - 37.99"/ 930 - 965 mm
WEIGHT (LBS / KG): 21 lbs / 9.50 kg
Larger sizes and custom solutions available upon request with 35 mm / 1.37" expansion range
The Rapid Purge Bag comes with fittings: International = 21 KA series male connector Americas = ¼" (0.25") NPT male connector
