►DESCRIPTION

System designed to be used when high temperatures will be encountered during the process of pipe welding; such as pre-heated pipe work, and pipes where very high temperatures are required for welding

This version of the inflatable pipe purging system is heat resistant up to 350ºC (662ºF) for up to 24 hours, or up to 500ºC (932ºF) for short periods of time. The heat resistant system is available for all pipe diameters from 3 - 80" / 63 - 2,035 mm

Mirroring the features of the standard range of inflatable purging system, the heat resistant range comes with a central luminous band for rapid centring of the system to the weld root

The welder can position this system prior to pre-heating and leave them in place throughout the pre-heating, welding and post-heat treatment cycles, allowing the weld to be purged continuously for up to 24 hours if necessary

►FEATURES

Withstands temperatures up to 350ºC (662ºF) for 24 hours or up to 500ºC (932ºF) for short periods

Suitable for pipe diameters from 3" to 80" / 63 mm to 2044 mm

Flexible design ensures easy installation, use, and removal from pipes, elbows, fittings, etc.

Ideal for 24-hour cycles including preheating, welding, and post-weld heat treatment

Central glowing line ensures precise alignment with the weld seam

Made from nuclear-grade approved materials to ensure clean, oxide-free welds

Developed for the power industry, especially for high-strength chrome alloy steels

Ready to use, connects to a dedicated and regulated gas supply. Choose any flow rate (purge bags - up to 20 l / min / Rapid Purge up to 80 l / min) through the twin pre-set purge valve

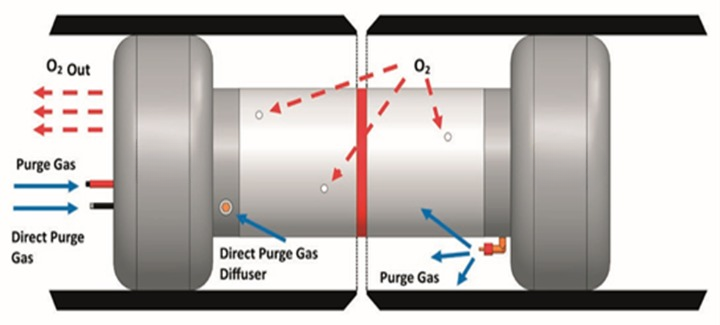

►SYSTEM FUNCTION

Both the heat-resistant Purge Bag and Rapid Purge systems work like standard models but are made of a special Nomex-Kevlar blend to withstand high temperatures during welding of exotic materials

►SIZING AND SPECIFICATION

Larger sizes and custom solutions available upon request with 35 mm / 1.37" expansion range

The Heat Resistant Purge Bag comes with fittings:

International = 21 KA series male connector

Americas = ¼" (0.25") NPT male connector

NOMINAL PIPE SIZE: 22"/ 550 mm

INTERNAL DIAMETER RANGE (I/D): 19.69 - 21.05"/ 500 - 535 mm

WEIGHT (LBS / KG): 7 lbs /3.60 kg
